Description

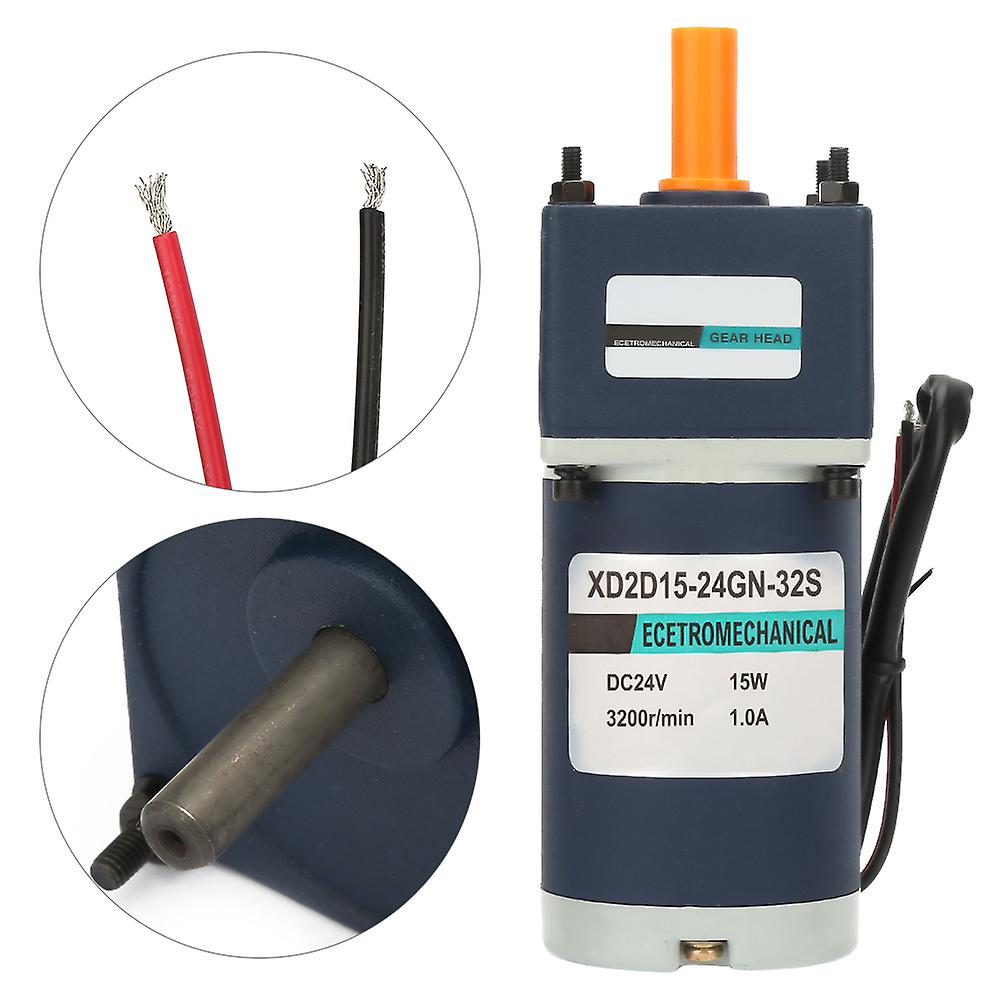

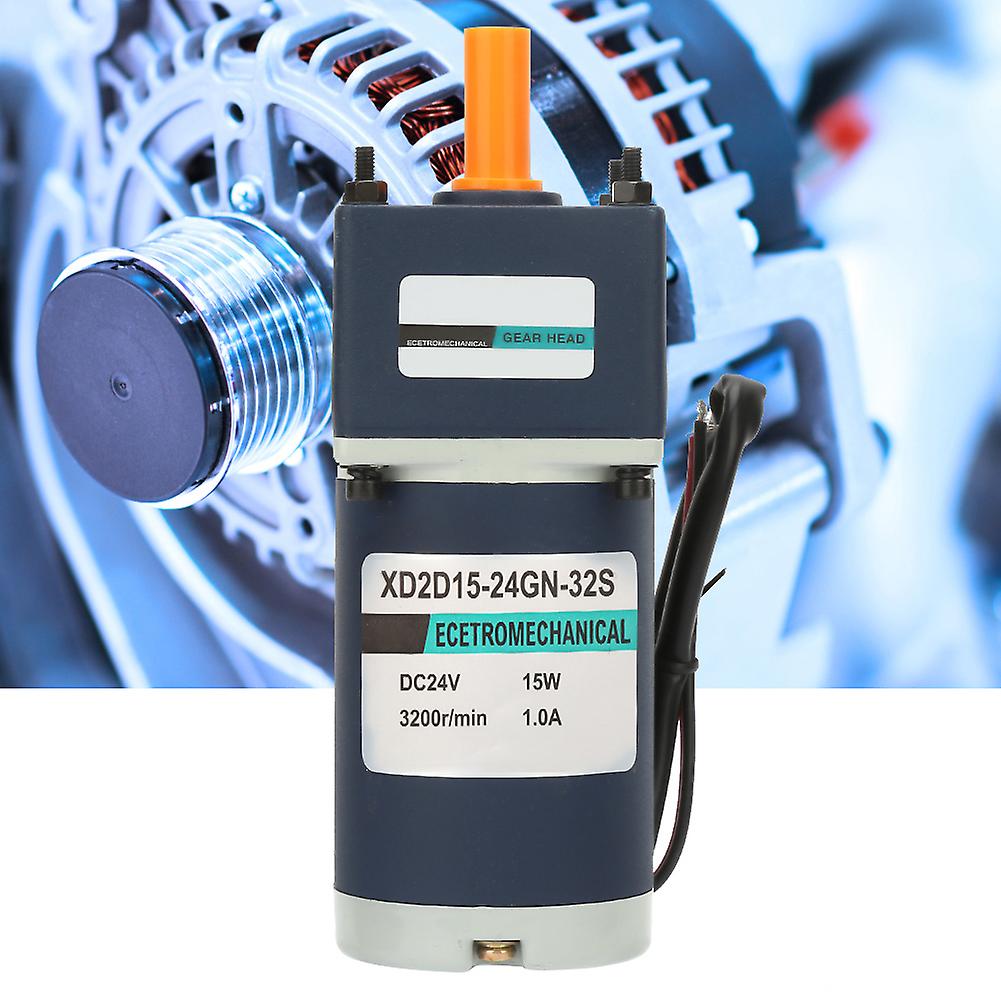

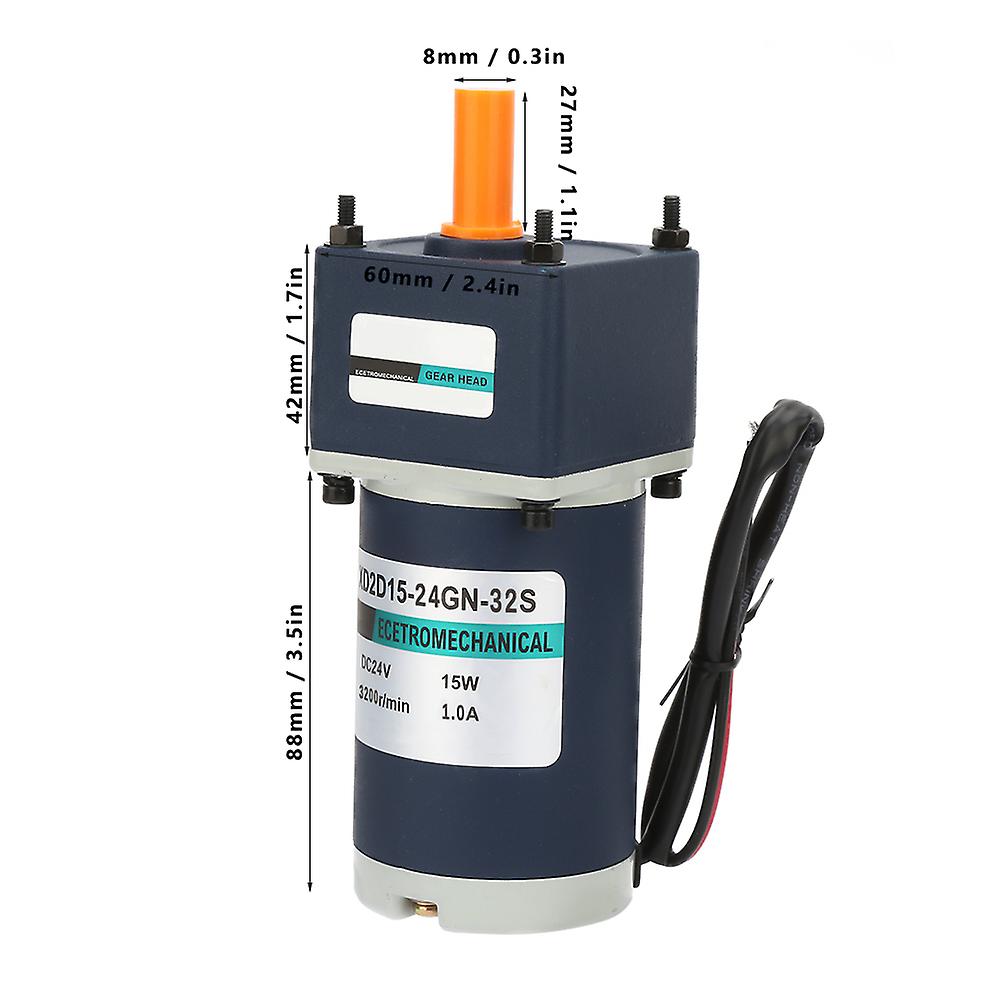

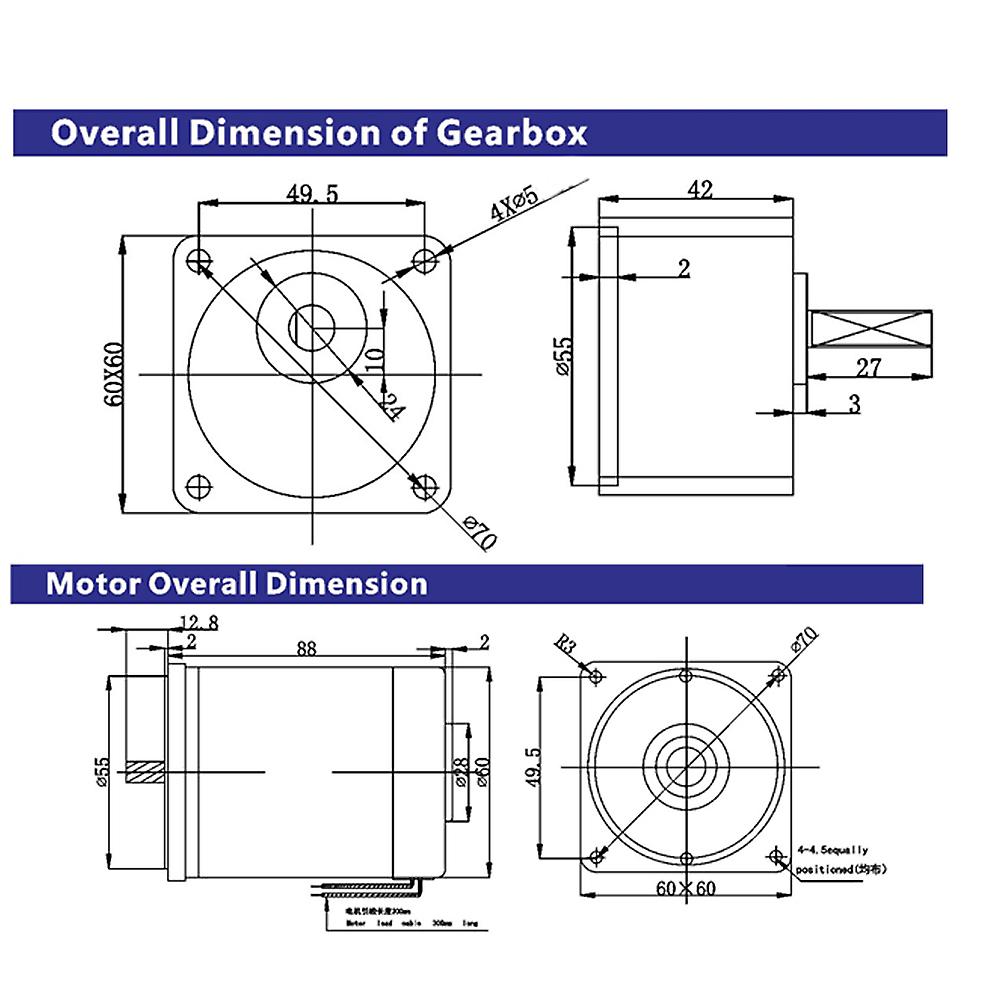

1A gear motor is a specific type of electrical motor that is designed to produce high torque. 2Supporting clockwise and counterclockwise rotation. 3Using pure copper coil for smooth running and long service life. 4Metal gear with good wear resistance can provide large transmission torque. 5Widely applicable for automatic machinery， small scale assembly line， food machinery， packaging machinery and more.Features: A gear motor is a specific type of electrical motor that is designed to produce high torque. Supporting clockwise and counterclockwise rotation. Using pure copper coil for smooth running and long service life. Metal gear with good wear resistance can provide large transmission torque. Widely applicable for automatic machinery， small scale assembly line， food machinery， packaging machinery and more. Specification:Model: XD2D15-24GN-32SVoltage: 24VPower: 15WMotor no-load speed: 3200RPMMotor no-load current: 0.5AMotor load speed: 3000RPMMotor load current: 1.0ATorque: 0.5 kg.cmInsulation class: Class BMotor size: 60*60*130mm / 2.4*2.4*5.1inOutput shaft size: 8*27mm / 0.3*1.1inOutput shaft speed (Optional):Reduction ratio 3， 1067RPMReduction ratio 5， 640RPMReduction ratio 7.5， 430RPMReduction ratio 10， 320RPMReduction ratio 12.5， 260RPMReduction ratio 15， 210RPMReduction ratio 18， 180RPMReduction ratio 20， 160RPMReduction ratio 25， 130RPMReduction ratio 30， 110RPMReduction ratio 36， 90RPMReduction ratio 50， 65RPMReduction ratio 60， 50RPMReduction ratio 75， 40RPMReduction ratio 100， 30RPMReduction ratio 150， 20RPMReduction ratio 180， 17RPMReduction ratio 200， 16RPM Package list: 1 x Gear Motor

• Brand: Gegong
• Category: Forestry & Logging

• Fruugo ID: 147070481-310213205
• EAN: 580741422939
• Sold by: Shenzhen Qimo Network Technology
